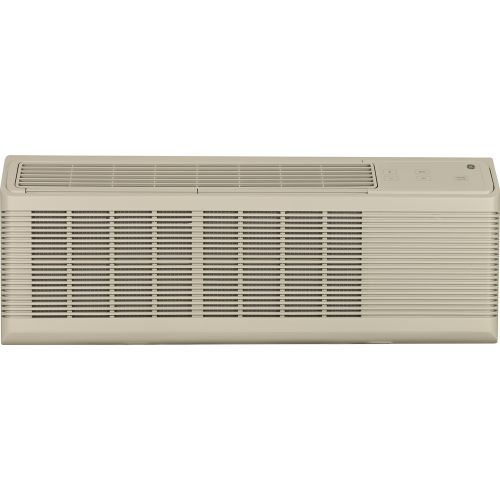

GE® Zoneline® PTAC 7000 BTU Electric Heat, 20amp, 230v, R410a Refrigerant
Part Number
0066121
Shipping Weight
110 lbs
Case Pack
1
MFG #AZ45E07DAB
Country Of Origin
United States
$830.59 / Each
1
Description
Cooling capacity - 7,200/7,000 BTU. Energy efficiency - 13.4/13.4 EER. Dehumidification - 1.7 pints/hour. Indoor fan CFM (high/low) - 409/250. Fresh air vent CFM (fully open high fan) - 33. Quiet operation - Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort. Heat & Freeze Sentinels - Keeps the room from overheating or freezing. Electronic temperature limiting - Prevents expensive over-cooling or over-heating of the room. Electronic touch controls with LED display. R-410A refrigerant. SMC base pan. Simplified structure - Easy to maintain and service. FEATURES: Sensible Heat Ratio: 70%. Chassis Type: Slide-In. Control Type: Coverless Backlit White LED Touch
Controls. Discharge Grille: 2-position. Electronic Micro Computer Control: Yes. Fan Cycle Switch: Yes.
Fan Motor: 2. Fan Speed Control: Yes. Fan Speed Selections: Hi/Low Cooling; Hi/Low Fan Only;
Hi/Low Heating. Filter Type: Rigid Frame; Slide-Out. Heat - Cool: Yes. Louver Style
Brand
GE Zoneline
Color / Finish
Beige
Accessories
Not Applicable
BTUs
7,000 - 8,900
Cord Included
No
Heat Type
Electric Heat
Voltage
230 - 208
Width
40.0 - 49.9 in
- Easy-to-use electronic touch controls with clear LED readout provide a user-friendly experience
- Compatible with a wide variety of thermostats and energy management systems, including central desk control
- Cross-flow blower, two DC fan motors, and 'smart fan' cooling and heating keep the unit quiet and efficient
- Weather barrier system seal
- Electronic, 7-step temperature limiting
- Heat and freeze sentinels
- Reversible louver style
- Slide-in chassis
- Rotary compressor
- Fan speed control with fan cycle switch
- Electronic micro computer control
- Auto power recovery
- 60 - 85 F temperature range
- Rigid frame, slide-out filter
- 3-position manual vent control
- 2-position discharge grille
Cooling BTUs (@230V): 7200
EER (@230V): 13.4
Cooling Amps (@230V): 2.5
Cooling Watts (@230V): 535
Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps
Electric Heating BTUs (@230V): 8100 / 11600
Electric Heating Amps (@230V): 10.5 / 14.9
Electric Heating Watts (@230V): 2400 / 3400
1 Year limited warranty. Sealed system warranty - 5 years
GE® Zoneline® PTAC 7000 BTU Electric Heat, 20amp, 230v, R410a Refrigerant
$830.59 / Each
